| Business Type | Manufacturer, Exporter, Supplier |
| Strapping Qualities | Uniflex and Ultraflex max. 1100 N/mm2, 160'000 psi |
| Strapping Dimensions | Width 12.7 – 25.0 mm / thickness 0.5 – 1.00 mm |
| Weights | 17.4 and 18.4 kg / 38.4 and 40.6 lbs with suspension |
| Click to view more | |
Preferred Buyer From
| Location | India, Nepal, South Africa, Bangladesh, Sri Lanka, Bhutan |
Product Details
Advantages

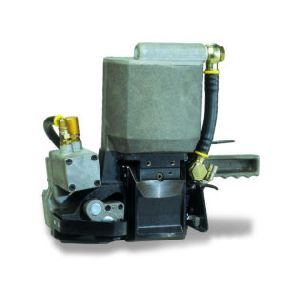

A383
Strapping Qualities : Uniflex and Ultraflex max. 1100 N/mm2, 160'000 psi
Strapping Dimensions : Width 19.0 – 32.0 mm / thickness 0.63 – 1.30 mm
Weights : 23.5 kg without suspension / 24.0 kg with suspension
Average seal strength : Approx. 80%
Versions available : Sealless (available also with MicroLock TM system)
Strap tension : 1000 N and 1500 N
A385
Strapping Qualities : Uniflex and Ultraflex max. 1100 N/mm2, 160'000 psi
Strapping Dimensions : Width 9.5 – 20.0 mm / thickness 0.38 – 0.63 mm
Weights : 10.0 kg without suspension / 10.5 kg with suspension
Average seal strength : Approx. 80%
Sealless joint : FROMM MicroLock TM
Strap tension : 2200 N / 3500 N / 4100 N / 6500 N

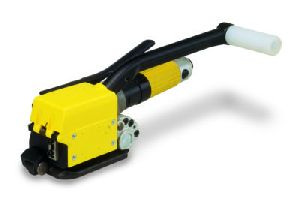

A390
Strapping Qualities : Uniflex regular duty max. 850 N/mm2 / 123'000 psi
Strapping Dimensions : width 9.5 – 20.0 mm / thickness 0.38 – 0.58 mm
Weights : 5.1 kg without grip ball / 5.2 kg with grip ball
Average seal strength : Approx. 80%
Strap tension : 6000 N / 1350 lbs
A391
Strapping Qualities : Ultraflex high tensile max. 1100 N/mm2 / 160'000 psi
Strapping Dimensions : Width 12.7 – 19.0 mm / thickness 0.38 – 0.58 mm
Weights : 5.1 kg without grip ball / 5.2 kg with grip ball
Average seal strength : approx. 80%
Strap tension : 6000 N / 1350 lbs
A452
Strapping Qualities : Uniflex and Ultraflex max. 1100 N/mm2 / 160'000 psi
Strapping Dimensions : Width 19.0 - 32.0 mm / thickness 0.63 – 1.27 mm
Weight : 4.35 kg / 9.6 lbs
Strap tension : 8500 N / 1900 lbs (6 bar / 87 psi)
Seals : Overlap seals
Sealing : With separate sealer model A412 or A461
A461
Strapping Qualities : Uniflex and Ultraflex max. 1100 N/mm2 / 160'000 psi
Strapping Dimensions : width 19.0 - 32.0 mm / thickness 0.63 – 1.00 mm
Weight : 4.2 kg / 9.3 lbs
Tension : With separate tensioner (Model A452)

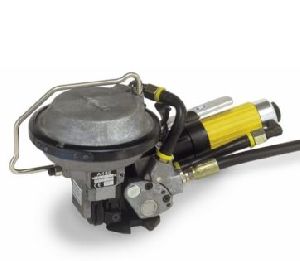

A480
Strapping Qualities : Uniflex and Ultraflex max. 1100 N/mm2 / 160'000 psi
Strapping Dimensions : Width 10.0 – 19.0 mm / thickness 0.38 – 0.63 mm
Weights : 4.5 kg without suspension / 4.6 kg with suspension
Average seal strength : approx. 55%
Seals : Overlap seals, see chart
Type of joint : Single notch joint
Strap tension : 2500 N and 4500 N
A482
Strapping Qualities : Uniflex and Ultraflex max. 1100 N/mm2 / 160'000 psi
Strapping Dimensions : Width 19.0 mm / thickness 0.63 – 0.90 mm
Weights : 6.5 kg without suspension / 7.0 kg with suspension
Average seal strength : Approx. 75%
Seals : Overlap seals, see chart
Type of joint : Double notch upcut joint
Strap tension : 4000 N and 7000 N
A483
Strapping Qualities : Uniflex and Ultraflex max. 1100 N/mm2 / 160'000 psi
Strapping Dimensions : Width 25.0 - 32.0 mm / thickness 0.80 – 1.00 mm
Weights : 18.0 kg without suspension / 19.5 kg with suspension
Average seal strength : Approx. 75%
Seals : Overlap seals, see chart
Type of joint : Double notch upcut joint
Strap tension : 7000 N and 9000 N
